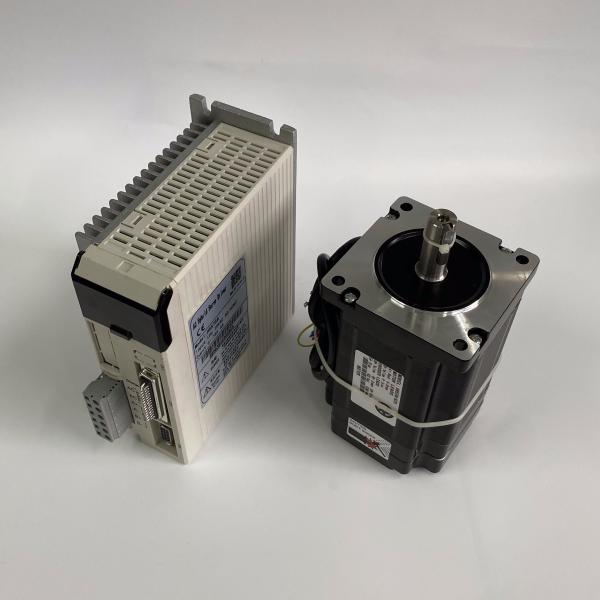

Milling machine nema 34 easy servo high torque stepper motor 8.5N.m and stepper servo driver
Motor Model: 86HSE8N-BC38
Step Angle: 1.8 degree
Current: 6A
Resistance: 0.44Ω±%10
Inductance: 3.7mH±20%
Holding torqie: 8.5N.m (1169oz.in)
Encoder line: 1000 lines
Motor Weight: 4kg
Suitable driver: HSS758
Driver Weight:1.5kg
Closed Loop Stepper Motor and Driver:
Features:
1.32-bit DSP and vector closed-loop control technology
2.Without losing step, high accuracy in position
3.Improve the motor output torque and working speed
4.Variable current control technology, restrain motor temperature rise
5.Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no need to adjust the gain parameter
6.Smooth and reliable moving, low vibration, great improvement in accelerate and decelerate
7.The ability of zero speed static without vibration
8.Adapt to 2-phase 86(NEMA34) hybrid servo motor
9.Maximum step-pulse frequency 200KHZ
10.Micro step 400-65535 pulse/rev
11.Voltage range AC50V~80V
12.Over current, over voltage and over position protection
13.Six digital tube display, easy to set parameters and monitor the motor running state
Electrical Parameters:
| Mode | Step angle | Current (A) | Resistance (Ω±10%) | Inductance (mH±20%) | Holding torque (N.m) | Motor length (mm) | Encoder Resolution(PPR) | Weight(kg) | suitbale driver |
| 42HSE05N-D24 | 1.8° | 1.5 | 2.8 | 5.5 | 0.55 | 48 | 1000 | 0.45 | HSS42 |
| 57HSE2N-D25 | 1.8° | 4.2 | 0.5 | 1.8 | 2 | 76 | 1000 | 1.15 | HSS57 |
| 60HSE3N-D25 | 1.8° | 5 | 0.45 | 1.8 | 3 | 88 | 1000 | 1.55 | HSS60 |
| 86HSE4N-BC38 | 1.8° | 6.0 | 0.45 | 3.7 | 4.5 | 82 | 1000 | 2.65 | HSS86,HSS758 |
| 86HSE8N-BC38 | 1.8° | 6.0 | 0.44 | 3.7 | 8.5 | 118 | 1000 | 4.0 | HSS86,HSS758 |
| 86HSE12N-BC38 | 1.8° | 6.0 | 0.45 | 5.2 | 12 | 156 | 1000 | 5.65 | HSS86, HSS758 |
| 110HCE12N-B39 | 1.2° | 4.2 | 1.2 | 13 | 12 | 139 | 1000 | 8 | 3HSS2260 |
| 110HCE16N-B39 | 1.2° | 6.4 | 0.9 | 9.5 | 16 | 180 | 1000 | 10 | 3HSS2260 |
| 110HCE20N-B39 | 1.2° | 4.2 | 1.88 | 18 | 20 | 221 | 1000 | 12 | 3HSS2260 |
| 130HCE36N-B45 | 1.2° | 8.5 | 0.93 | 13.1 | 36 | 230 | 1000 | 20 | 3HSS2260 |
| 130HCE50N-B45 | 1.2° | 8.5 | 1.82 | 18.5 | 50 | 282 | 1000 | 24 | 3HSS2260 |
Motor Dimension:
Driver installation size: (mm)
Driver Wring Diagram:
Microstep selection:
| Micorstep/rev | SW3 | SW4 | SW5 | SW6 |
| Default(400) | on | on | on | on |
| 800 | off | on | on | on |
| 1600 | on | off | on | on |
| 3200 | off | off | on | on |
| 6400 | on | on | off | on |
| 12800 | off | on | off | on |
| 25600 | on | off | off | on |
| 51200 | off | off | off | on |
| 1000 | on | on | on | off |
| 2000 | off | on | on | off |
| 4000 | on | off | on | off |
| 5000 | off | off | on | off |
| 8000 | on | on | off | off |
| 10000 | off | on | off | off |
| 20000 | on | off | off | off |
| 40000 | off | off | off | off |
Torque/Frequency Curve:
Applications:
stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives, intelligent lighting, camera lenses, CNC machines and, more recently, in 3D printers.
|
|
